Samsung Ships Industry’s First Multi-chip Package with a PRAM Chip for Handsets
서울--(뉴스와이어) 2010년 04월 28일 -- Samsung Electronics Co., Ltd., the world leader in advanced semiconductor technology solutions, today announced the industry’s first multi-chip package (MCP) with PRAM – for use in mobile handsets, beginning later this quarter.

The 512 megabit Samsung PRAM in the MCP is backward compatible with 40 nanometer-class* NOR flash memory in both its hardware and software functionality, allowing mobile handset designers the convenience of having multi-chip packaging fully compatible with past stand-alone PRAM chip technology. PRAM is expected to be widely embraced by next year as the successor to NOR flash in consumer electronics designs to become a major memory technology.

“Memories for portable consumer devices today are at a major turning point as mobile applications increasingly require more diverse memory technologies,“ said Dong-soo Jun, executive vice president, Memory Sales and Marketing, Samsung Electronics. “The launch of our PRAM in an advanced MCP solution for the replacement of 40nm-class and finer geometry NOR meets this need head-on. Our PRAM MCP will not only enable handset designers to utilize conventional platforms, but expedite the introduction of LPDDR2 DRAM and next-generation PRAM technology as the leading-edge basis for high-performance solutions,” he added.

PRAM, which stores data via the phase change characteristics of its base material, an alloy of germanium, antimony and titanium, provides three-times faster data storage performance per word than NOR chips. This new PRAM-packaged memory combines the nonvolatile nature of flash memory with the high-speed capability of DRAM. Its simple cell structure makes designing MCP chips for handsets a faster and easier process, with the imminent use of 30nm-class and finer process node technology to overcome long-time design difficulties inherent in NOR flash technology.

As a replacement for NOR, PRAM can more easily accommodate the growing demand for high-speed, high-density nonvolatile memory in mobile phones and other mobile applications such as MP3 players, personal multimedia players and navigational devices.

Samsung is continuing its research and development into PRAM and other advanced memory chips to enable faster ‘write’ capabilities, a key feature in taking photo images, providing multimedia messaging and recording video clips to reduce the standby time in data storage. This high-speed write capability will be important in a diverse span of digital storage and consumer devices, such as solid state drives (SSDs) and HDTVs.

About Samsung Electronics Co., Ltd.

Samsung Electronics Co., Ltd. is a global leader in semiconductor, telecommunication, digital media and digital convergence technologies with 2009 consolidated sales of US$116.8 billion. Employing approximately 188,000 people in 185 offices across 65 countries, the company consists of eight independently operated business units: Visual Display, Mobile Communications, Telecommunication Systems, Digital Appliances, IT Solutions, Digital Imaging, Semiconductor and LCD. Recognized as one of the fastest growing global brands, Samsung Electronics is a leading producer of digital TVs, memory chips, mobile phones and TFT-LCDs. For more information, please visit www.samsung.com.
  • 언론 연락처
  • Soojeong Lee
    Samsung Electronics
    +82-2-2255-8275
    Email 보내기
삼성전자 전체 보도자료 보기
이 뉴스는 기업이 뉴스와이어를 통해 발표한 보도자료입니다. 언론 매체와 블로그는 보도를 목적으로 이 보도자료를 사용할 수 있습니다. 보도자료 등록 안내
언론 연락처

Soojeong Lee
Samsung Electronics
+82-2-2255-8275
Email 보내기
http://www.sec.co.kr

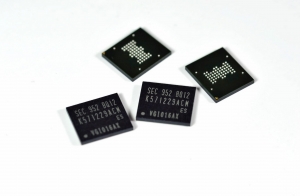

  • (사진제공: 삼성전자)
