Toshiba Launches Large-current Control Photorelays in Small Packages

Line-up for 1.7A to 4A in 2.54SOP4 and 2.54SOP6 packages

뉴스 제공

Toshiba Corporation Storage & Electronic Devices Solutions Company

2016-07-11 11:45

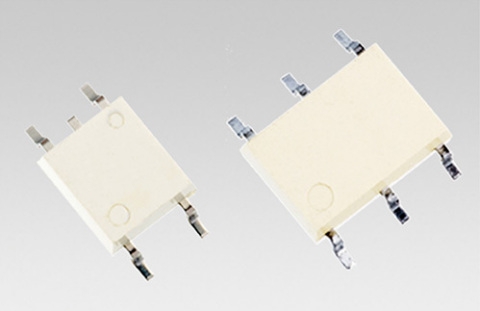

TOKYO--(Business Wire / 뉴스와이어)--Toshiba Corporation’s (TOKYO:6502) Storage & Electronic Devices Solutions Company today announced the launch of large-current control photorelays, for currents in the range of 1.7A to 4A, in 2.54SOP4 and 2.54SOP6 small packages. Shipments start from today. Applications for the new line-up of four products, TLP3106, TLP3107, TLP3109 and TLP3127, include programmable logic controllers (PLC), battery management systems (BMS) and factory automation inverters. The new photorelays utilize Toshiba’s latest generation trench MOSFETs to control large currents at levels equivalent those usually handled by mechanical relays[1]. Compared to mechanical relays, which have mechanical contacts, photorelays have the advantages of producing less noise and no deterioration caused by the contacts wearing.

In the case of the new 2A product, TLP3109, use of a 2.54SOP6 package reduces mounting volume by approximately 40% and the product height by approximately 50%, against Toshiba previous products in DIP packages. The small size allows mounting on the back surface of printed circuit boards and can contribute to smaller sets. Furthermore, the line-up includes products with terminal voltages (blocking voltages) of up to 100V for use in various applications.

Main Specifications (@Ta=25℃)

Part Number Package Absolute Maximum Ratings RON typ. IOFF max.
TLP3106 2.54SOP6 30V 4A 1500Vrms 0.02Ω 20nA
TLP3107 2.54SOP6 60V 3.3A 1500Vrms 0.03Ω 20nA
TLP3109 2.54SOP6 100V 12A 1500Vrms 0.04Ω 20nA
TLP3127 2.54SOP4 60v 1.7A 1500Vrms 0.08Ω 10nA

Notes
[1] Small capacity, small-size mechanical relays for printed circuit boards.

Follow the links below for more on the new products.
